Offset Angle Head L-16

FOB Reference Price:Get Latest Price
US $100-5,000 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WET/OEM
Model Number:
L-16
Application:
Other
Type:
angle head
Brand:
WET/OEM
Spec.:
L-16
Delivery time:
Within 15 days after payment
Payment:
TT,Western Union, Escrow
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed in box
Port
Shenzhen
Lead Time :
within 15days after payment

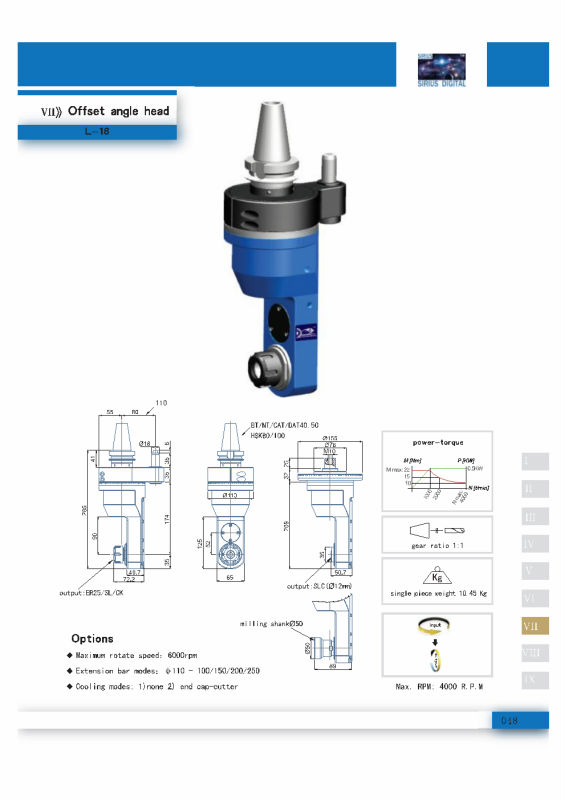

Offset Angle Head L-16




















Angle Head



Angle head is  a kind of machine accessory. The Angle Head dorms an angle between the cutter's axle and the machine's axle, which makes it possible to finish processing four surfaces without repositioning the work piece. The Angle Head is very popularly used in carious areas like aircraft, auto, mold, stone material. The angle head enlarges processing modes that can't do with conventional way, improves the processing accuracy and efficiency. The angle head is mainly used with vertical and horizontal machining center, boring machine, milling planner and so on.





Angle Head Types



1.By structure:one output, two output, four output, adjustable, tilting, offsetting, nonstandard.

2.By holding mode: collet, shank, lateral holding, FM milling cutter

3.By mounting mode:supporting, flange





Angle Head's power



1.Accurate work piece can be positioned once to process five pieces accurately

2.Big size work piece can be processed multiple surface to improve efficiency

3.Process tilting angle, surface or hole with any angular way

4.Offset angle head can be used to process a hole inside another hole

5.Adjustable offset angle head can be used to process narrow slot and tilting slot...





How to choose Angle Head





1.Know the machine parameter,brand, type, vertical or horizontal, type of the principal axle, shank type( BT, NT, HSK, CAT, DAT...), is there coolant? Is the coolant from principal axle??

How high is the coolant's pressure? Power , torand rotate speed of the principal axle??

MAXIMUM LOAD AND LENGTH OF CUTTER? TYPE OF THE CUTTER MAGAZINE? CHANGE CUTTER AUTOMATICALLY??

2.Then check up the angle head parameter, holding modes(ER SLC, BT, NT, FM, C...)   rotate speed(RPM), torque,cooling mode(no cooling, inner cooling, outer cooling) and so on.





Notices when using the angle head



1.The temperature of angle head will increase quite a lot, the gear part lubricant will be consumed, so inject a little bit when working

2.Normal working rotate speed is suggested not exceed 75% of the speed limit

3.The dimension of T-type slot connexted with the angle head has been set in standard flange, but the user nedd to drill the hole connecting the machine principal axle in the connection part in the flange, and supply the connecting plate.
