CNC tool holder double ER20 output 90-20x2 milling/drilling Angle Head for sale

FOB Reference Price:Get Latest Price
US $1,000-5,000 / Units | 1 Unit/Units delivery time 15-20days (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WET
Model Number:
90-20x2
Application:
Milling Cutter
Item:
Angle Head
Shank:
BT/NT/DAT40/50 HSK80/100
Output:
ER32/SL/CK/FM
Height:
205.5mm
Width:
216mm
Weight:
12kg
Speed:
6000rpm
Original:
DongGuan
Delivery time:
15-20days
Shippment:
eXpress
Supply Ability
Supply Ability:
500 Unit/Units per Month CNC angle tool holder double ER20 output 90-20x2 milling Angle
Packaging & Delivery
Packaging Details
the CNC angle tool holder double ER20 output 90-20x2 milling Angle Head for salein a carton box.
Port
shenzhen
Lead Time :
1-2days when in stock

CNC angle tool holder double ER20 output 90-20x2 milling Angle Head  for sale



Product Description

 For the Angle Head,they are used for cnc machine to transfer the direction or promote the speed and so on .it's high precision and high quality,we provide full specifications of angle heads ,any demand please contact us for your convinience.

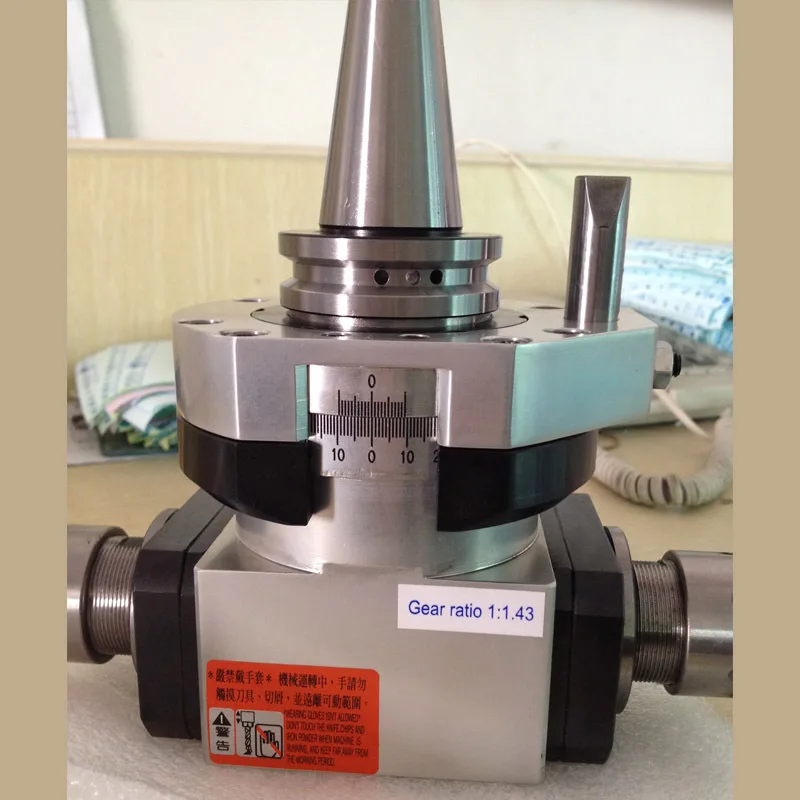

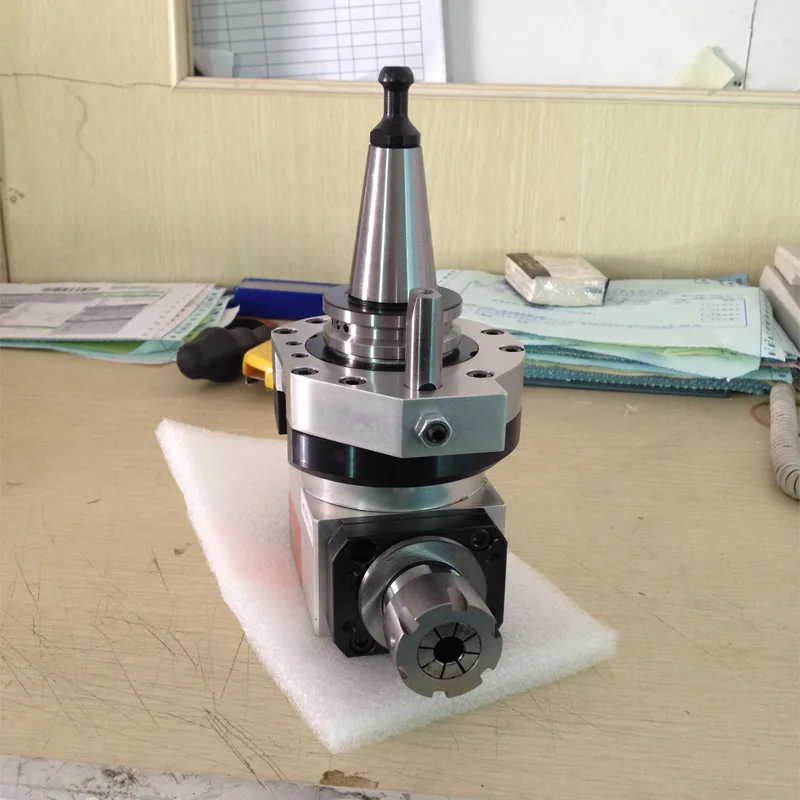

The details of the   CNC angle tool holder double ER20 output 90-20x2 milling Angle Head  for sale

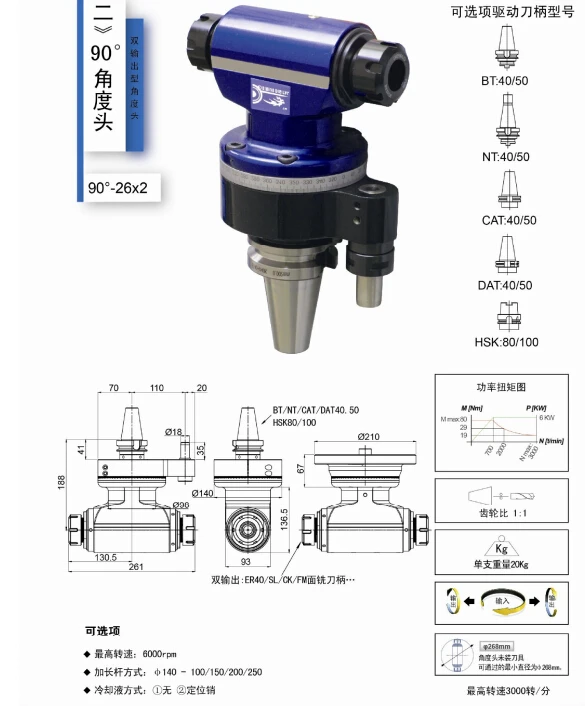

 The specifications of the CNC angle tool holder double ER20 output 90-20x2 milling Angle Head  for sale :

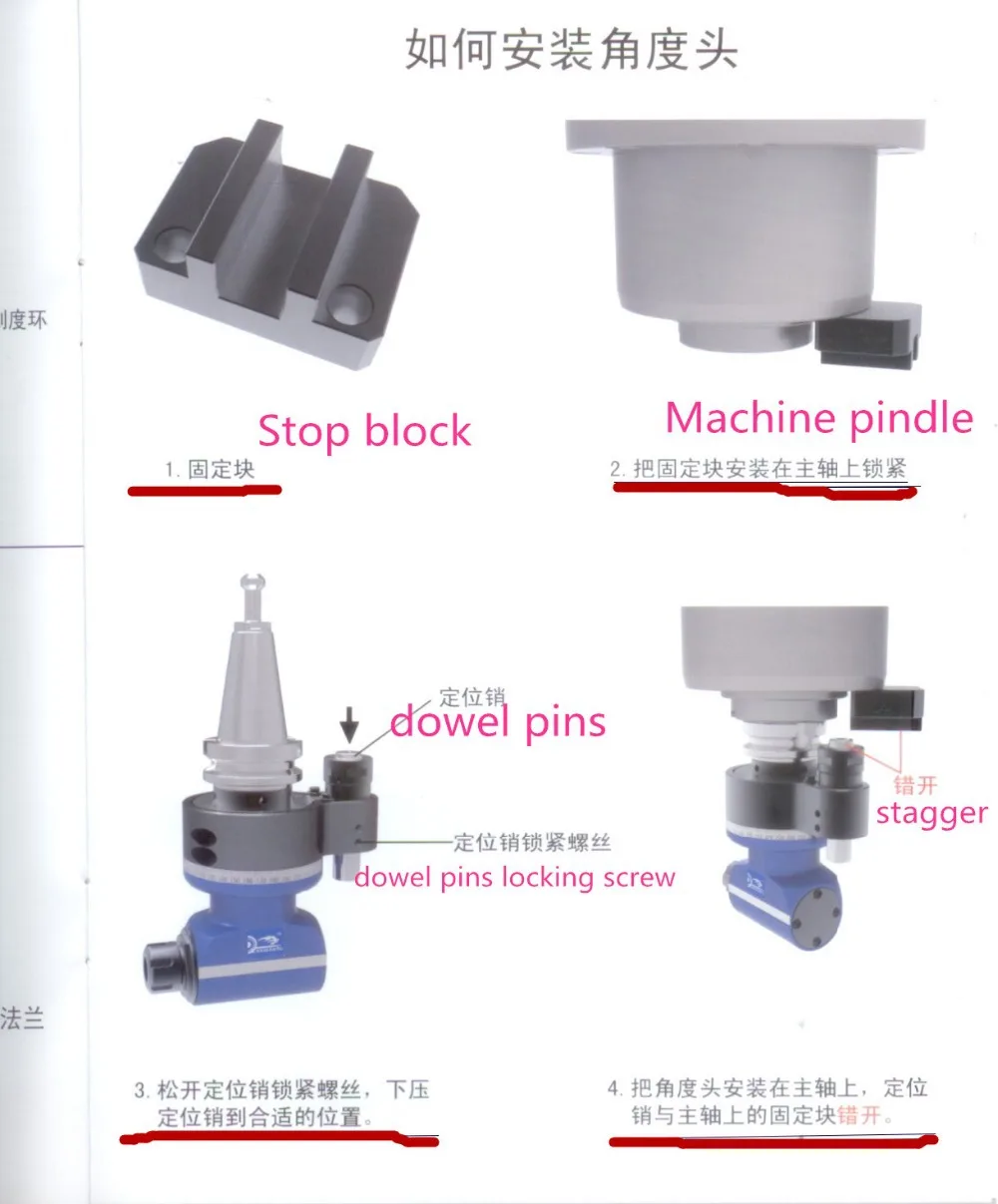

How to setting the angle head on machine





Setting step as below



1.Stop block

2.Locking the stop block on the machine spindle

3.Loosen the dowel pins screw, From the top downward the dowel pins to suitable position

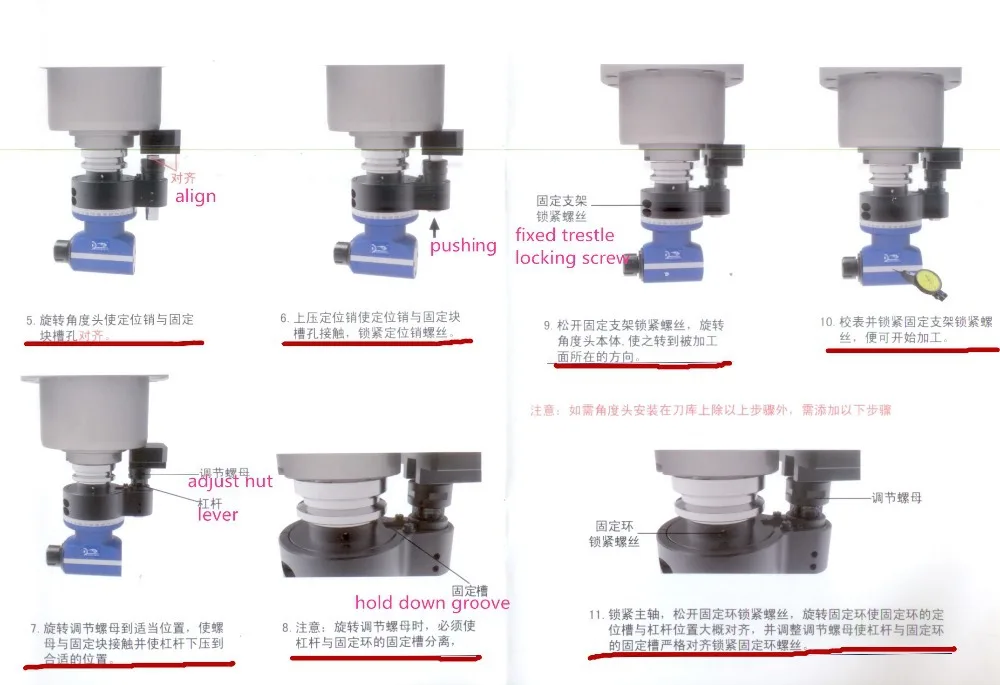

4.Setting the angle head on machine spindle, stagger the dowel pins & stop block

5.Rotate the angle head to make the dowel pins align at stop block

6.Pressure from down to up the dowel pins to make it lock with the stop block on spindle, locking the dowel pins screws

7.Rotate the adjust nut to the suitable position, make the nut touch with the stop block and the lever pushing to the suitable position

8.Attention:when rotate adjust nut , the lever must separate with fixing ring hold down groove

9. Loosen fixed trestle locking screw,rotate angle head holder to workpiece direction

10.Use the micro-watch to masureing the accuracy, locking fixed trestle , locking screw, all setting finished can start use the angel head





Packaging & Shipping

   CNC angle tool holder double ER20 output 90-20x2 milling Angle Head  for sale

Packingthe product Angle Head will be in a plastic bag,and then packing with carton box,also we would like to accept other packing form as your requirements.
ShippingUsually by Express(door to door ) ,we will recommend you a best way according to your quantity and your requirements. fast and economy.
Delivery time

1-2days when the goods in stock ,15--20days when out of stock .
